CB202 - Combo Plans - Chicken Coop Plans Construction
Garden Sheds Plans - Storage Sheds Plans Construction
...
......
It can comfortably hold 20 chickens
Nest boxes for 6 hens
Total land occupancy area: 22 10 5/8"x12 4 7/8"=284,549 Feet ²
Total height: 11 7 3/8"
- Storage Shed: 8x5=40 Feet ²
- Chicken Cage: 8x5=40 Feet ²
- Chicken Run: 8x7=56 Feet ²
- Construction area: 153,396 Feet ²
Total volume of wood: 368720 inches3 (= 213 feet3)
...
Dimensional lumber sizes:
a: 2"x6" (Nominal) = 1 1/2"x5 1/2" (Actual)
b: 2"x4" (Nominal) = 1 1/2"x3 1/2" (Actual)
c: 2"x2" (Nominal) = 1 1/2"x1 1/2" (Actual)
d: 1"x2" (Nominal) = 3/4"x1 1/2" (Actual)
e: 2"x6" (Nominal) = 1 1/2"x5 1/2" (Actual)
f: 1"x4" (Nominal) = 3/4"x3 1/2" (Actual)
g: 1"x6" (Nominal) = 3/4"x5 1/2" (Actual)
k: 1"x1" (Nominal) = 3/4"x3/4" (Actual)
h: 1" thickness (Nominal) = 3/4" thickness (Actual)
n: 1"x8" (Nominal) = 3/4"x7 1/4" (Actual)
m: 2"x8" (Nominal) = 1 1/2"x7 1/4" (Actual)
Units: Inches - fractions
...
Total land occupancy area: 6977x3782=26396590 mm² (=26.39 m²)
Total height: 3539mm
- Storage Shed: 2438x1524=3715512 mm² (=3.71 m²)
- Chicken Cage: 2438x1524=3715512 mm² (=3.71 m²)
- Chicken Run: 2438x2134=5202692 mm² (=5.20 m²)
- Construction area: 2438x5524=13467512 mm² (=13.46 m²)
Total volume of wood: 5.62 m3
...
Dimensional lumber sizes:
a: 50x150 (Nominal)=38x140 (Actual)
b: 50x100 (Nominal)=38x89 (Actual)
c: 50x50 (Nominal)=38x38 (Actual)
d: 25x50 (Nominal)=19x38 (Actual)
f: 25x100 (Nominal)=19x89 (Actual)
g: 25x150 (Nominal)=19x140 (Actual)
k: 25x25 (Nominal)=19x19 mm (Actual)
h: 25 thickness (Nominal)= 19 thickness (Actual)
n: 25x200 (Nominal)=19x184 (Actual)
m: 50x200 (Nominal)=38x184 (Actual)
Units: Millimeters - decimal
The functional component - the build step guide - Table of Contents:
0.0 - 0.6 - Concept design

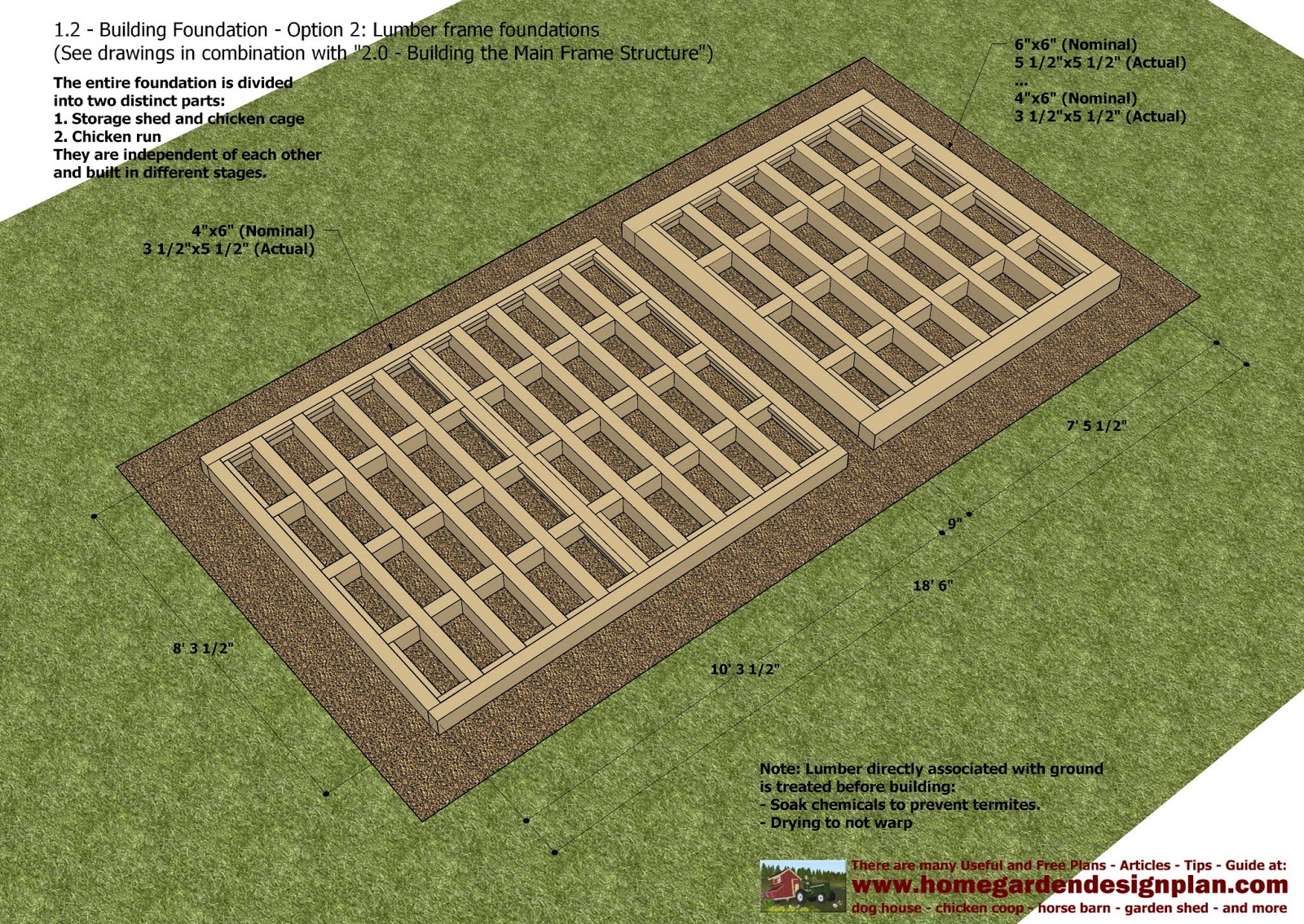

1.0 - Building a hole for the foundation
2.0 - Building the Main Frame Structure
3.0 - Building the Nest boxes
4.0 - Building the Interior Wall
5.0 - Building Perches for chickens

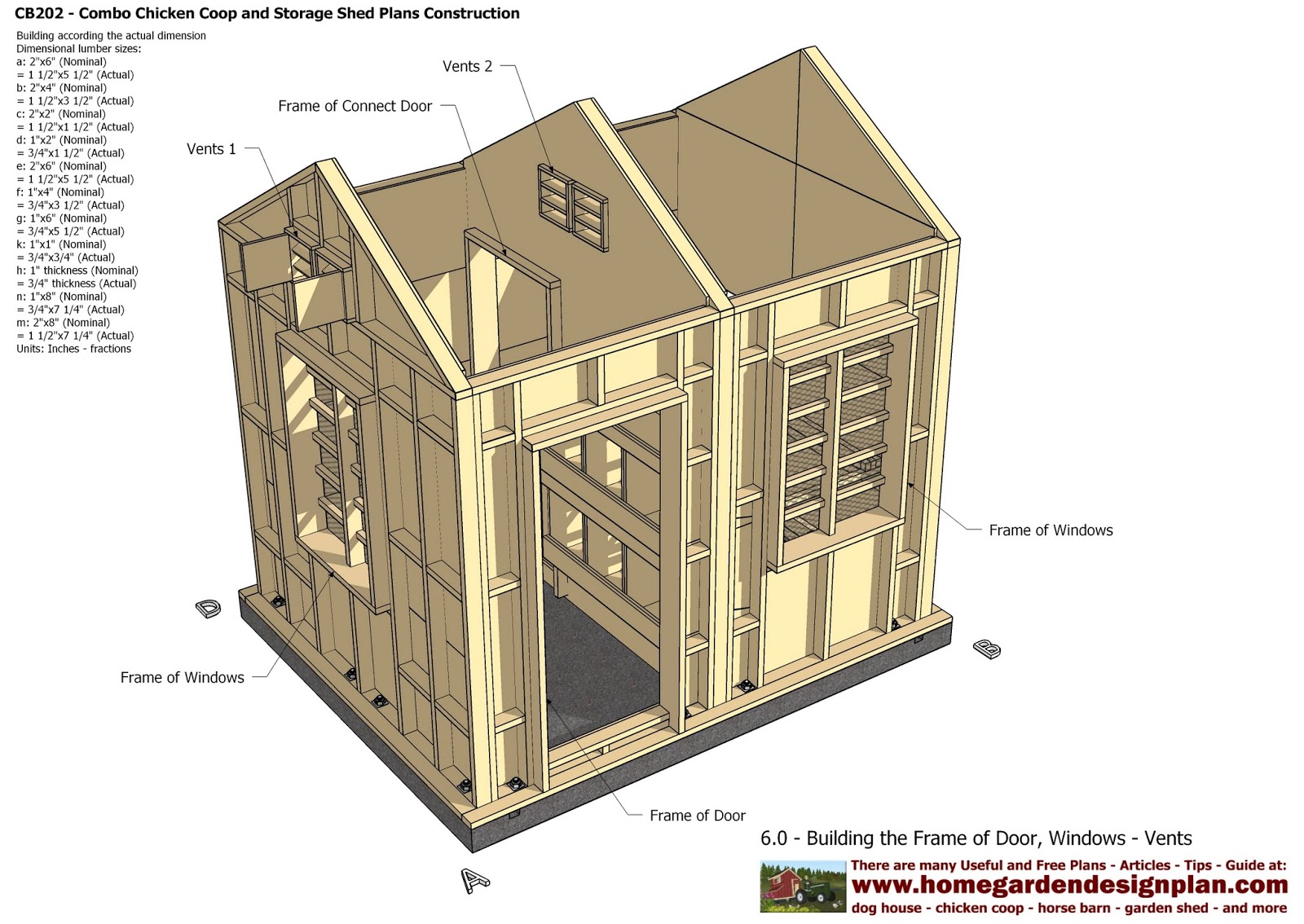

6.0 - Building the Frame of Door, Windows - Vents
6.6 - Building Automatic chicken door and Standard chicken door
7.0 - Building Roof beam
8.0 - Building Fiberglass Insulation for Wall
9.0 - Building Exterior Wall
10.0 - Building the Doors and Windows
11.0 - Building Ramp
12.0 - Building completed roof
13.0 - 14.0 - Building Chicken Run
14.0 - Building Chicken Run
15.0 - Perspective - The building was completed
...
CB202 - Combo Plans - Chicken Coop Plans Construction
Garden Sheds Plans - Storage Sheds Plans Construction
...
See more Concept Plans
...
Detailed Plans for Construction
(PDF file; Excel file
Units: Inches - fractions
Units: Millimeters - decimal
Units: Millimeters - decimal
More than 218 drawings in this document
- printed on A4 or A3 size paper)
FREE
(If you donate money to me,
I will create more and more plans that have high quality for free)
...
In any case, you always get the plans for free
by clicking on the "free download now" button below:
...
In each link:1. The detailed drawings for construction in the file:
- Name - Detailed Plans for Construction.pdf - (pdf file formate)
2. Materials list in the files:
- Name - The statistics table for woodworking - Excel file.rar - (excel file formate)
- Name - The statistics table for woodworking.pdf - (pdf file formate)
...
It is one of my designs that people most favorite and the most downloaded
If you can not download, please tell me. I will send you another way.
If you need anything else please tell me.
I am always ready to assist you in the design and construction.
I wish you success in building.
...
When completed your work. Please send photos to us.
We will give you gifts to express gratitude
Please frequently visit our Blog for seeing new design and get the design useful and free
Step by step instructions for specific, detailed, easy to understand, easy to build.
This is a perfect guidance of an architect has over 10 years experience designing.
Ive worked hard to get this design. I did it after hours, evenings, weekends.
I made it some weeks. So I loved it. I am very grateful to you if you love it.
I am very happy if it is useful to you.
I am very grateful to you if you comment on it so I completed it, so I better do the design in the future, for you ...
And I was very happy and thankful when youre holding this design, tracking my work and are reading these lines!
Wish you all the BEST! :)
...
